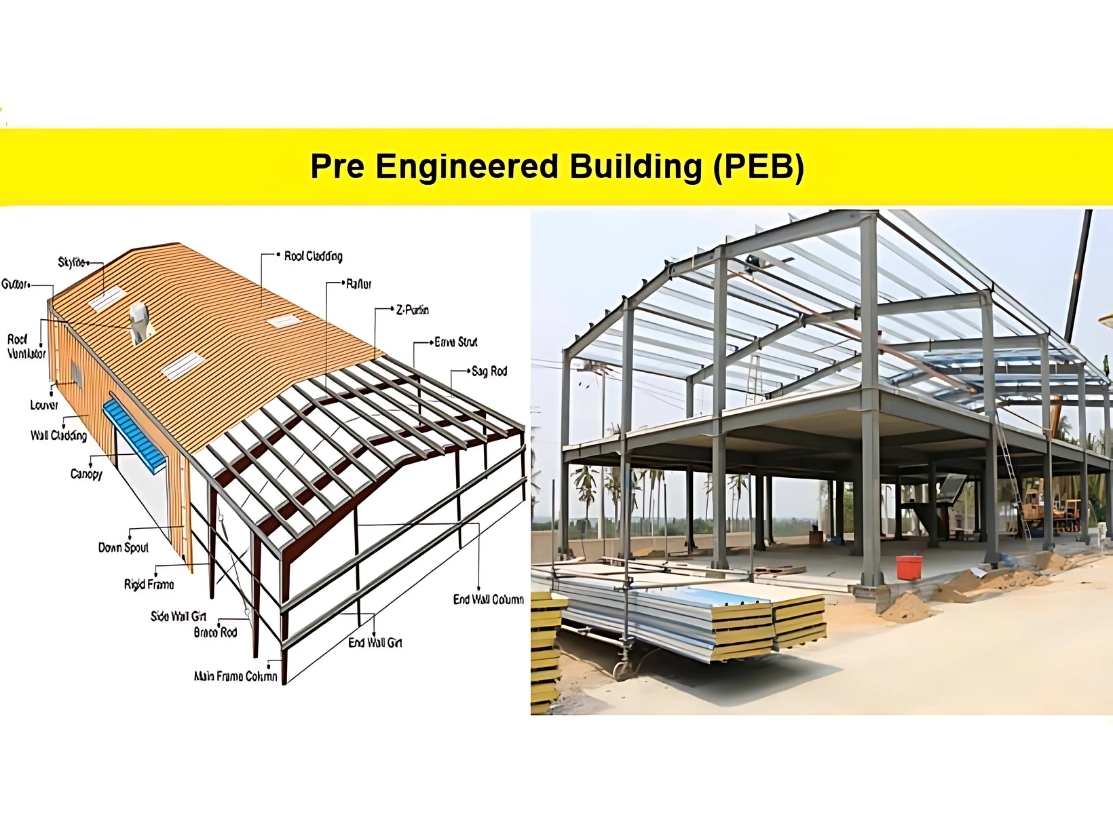

A Pre-Engineered Building (PEB) is divided into primary, secondary, and auxiliary components, all of which contribute to the overall functionality, durability, and efficiency of the building. Mahawar Group takes pride in delivering these components with utmost precision and quality.

1.Primary Components (Main Frame)

The primary components of a PEB structure are the backbone of the building. These elements are responsible for the load-bearing capacity of the structure and ensure its stability.

Columns

The columns are the primary vertical load-bearing components of the structure. Made from high-strength steel, these columns support the roof and transfer loads to the foundation. The quality and design of the columns are crucial for the building’s structural integrity. At Mahawar Group, our columns are designed to withstand various stresses and ensure long-lasting performance.

Example: Columns manufactured at JSB Cranes, Sirhind, were prepared and installed by Mahawar Group for a major industrial project.

Rafters

Rafters run across the span of the building, supporting the roof and maintaining the overall integrity of the structure. These horizontal members sit atop the columns and distribute the loads from the roof sheeting.

Example: Rafters prepared at Mahawar Group’s plant ready for dispatch.

Base Plate

Base plates are essential for distributing the load from the columns to the foundation. Anchored using anchor bolts, they ensure the building is securely attached to the foundation, providing stability and strength.

Example: Base plates ready for dispatch at Mahawar Group’s plant for Goindi Traders.

Anchor Bolt

The anchor bolts embedded in the concrete foundation play a crucial role in connecting the base plates to the foundation, ensuring the entire structure is firmly secured.

Example: Anchor bolt image and drawing.

2.Secondary Components

Secondary components of a PEB structure provide additional support and ensure that the primary components function as intended. These elements work in conjunction with the main frame to enhance the stability and strength of the building.

C & Z Purlins

Named for their shape, C and Z purlins run between the main frame and are used to support the roof and wall sheeting. They distribute loads to the primary structure and are essential for maintaining the overall stability of the building.

Sag Rods

Sag rods prevent purlins from buckling under the weight of the roof or wall sheeting. They maintain the structural integrity of the secondary framing and ensure that the load is evenly distributed.

Bracing

Bracing provides lateral stability to the structure, preventing it from swaying side to side. This component ensures the building remains structurally sound, especially in areas subject to high winds or seismic activity.

Cleats

Cleats are small steel plates used to secure secondary structural elements like purlins and girts to the main frame. They ensure that all components are securely attached and maintain the integrity of the structure.

Eaves Gutter

Located at the roof’s edge, the eaves gutter directs rainwater away from the building, preventing water accumulation and potential damage. This component is essential for maintaining the building’s durability and functionality.

3.Sheeting

Roof and wall sheeting are the outer layers that protect the building from environmental elements such as rain, wind, and sunlight. The choice of materials for roof sheeting and wall sheeting is critical for insulation, durability, and aesthetics.

Roof Sheeting

The roof sheeting forms the outermost layer of the building’s roof and protects it from the elements. These metal sheets come in various materials and colors, allowing for customization based on the client’s needs and design preferences. Roof sheeting also plays a role in maintaining the building’s energy efficiency by providing insulation.

Wall Sheeting

Similar to roof sheeting, wall sheeting forms the exterior of the building’s walls. It offers essential protection against the elements and is available in a variety of materials to meet different insulation, aesthetic, and functional requirements.

4.Other Accessories

In addition to the main components, a PEB structure includes several accessories designed to enhance the building’s functionality, comfort, and accessibility.

Sliding Doors

Sliding doors are essential for providing easy access to the building, especially in commercial or industrial settings. They are designed for efficiency, saving space, and can be customized to meet specific size requirements.

Roll Up Shutters

Ideal for warehouses and industrial buildings, roll-up shutters offer secure access for goods and vehicles. They provide enhanced security and convenience while protecting the building from unauthorized access.

Insulation

Insulation is critical for maintaining a comfortable internal temperature and improving the building’s energy efficiency. PEB structures are often equipped with high-quality insulation materials in the walls and roof to minimize heat transfer and reduce energy consumption.

Windows

Windows allow for natural light and ventilation, improving the building’s comfort and usability. They are often strategically placed to maximize airflow and sunlight while maintaining security and privacy.

Louvers

Louvers are installed in PEBs to allow for ventilation while preventing rain, dust, and debris from entering the building. These components ensure a comfortable and healthy interior environment.

Ventilators

Ventilators are essential for maintaining proper airflow and removing hot air from the interior. By facilitating natural ventilation, they ensure a comfortable indoor atmosphere.
